4D
Radar imaging
Range, velocity, azimuth, and elevation
BOTBLOX SYSTEMS

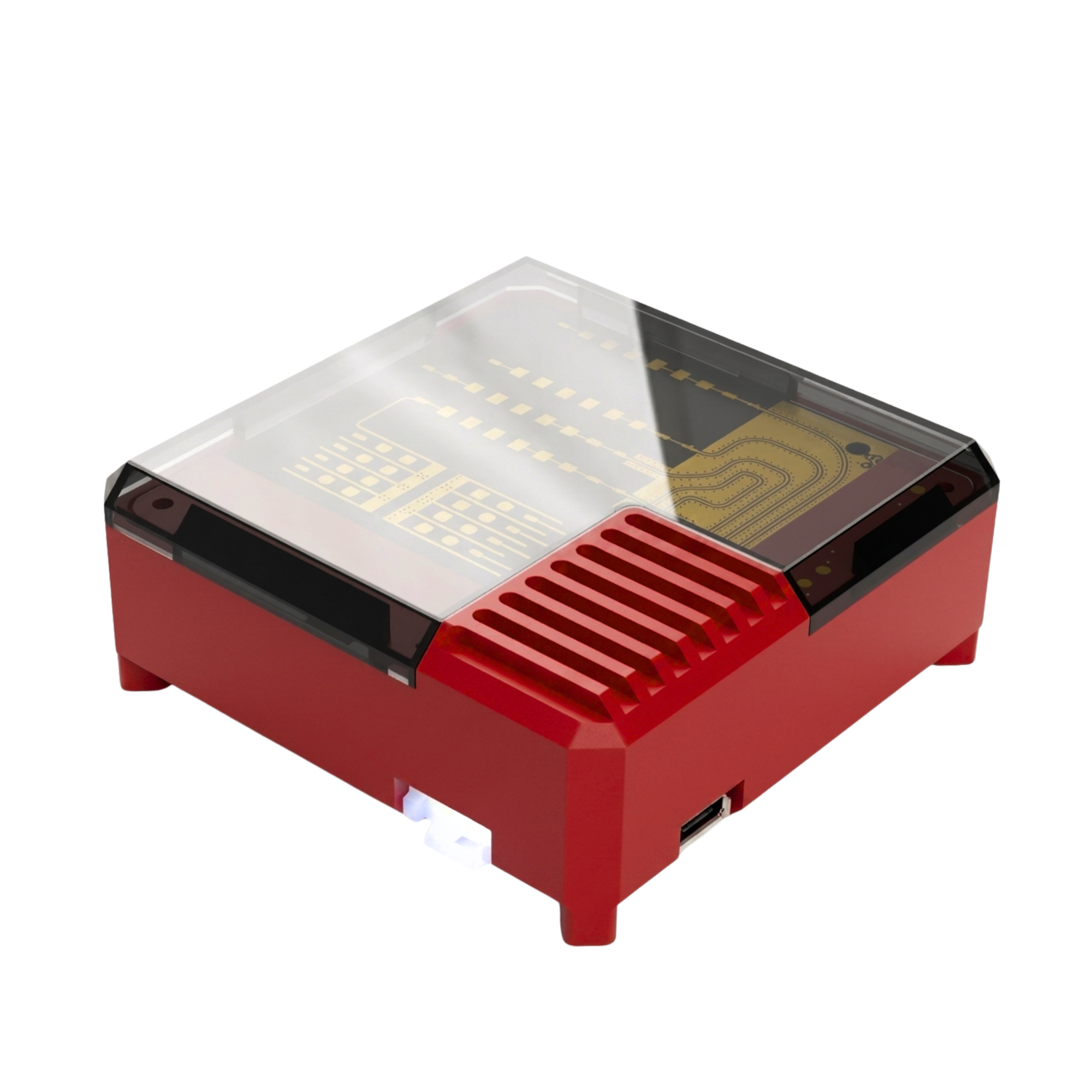

mmWaveCore
Compact, configurable 4D radar sensing for autonomous navigation, aerial robotics, and counter-UAS systems.
Range · Velocity · Azimuth · Elevation
200 m
Maximum range
With the long-range antenna configuration
76–81 GHz
Frequency band
High-performance mmWave sensing
0.039 m
Range resolution
Configurable for application requirements
100BASE-TX
Ethernet output
Built for embedded integration
MODULAR HARDWARE

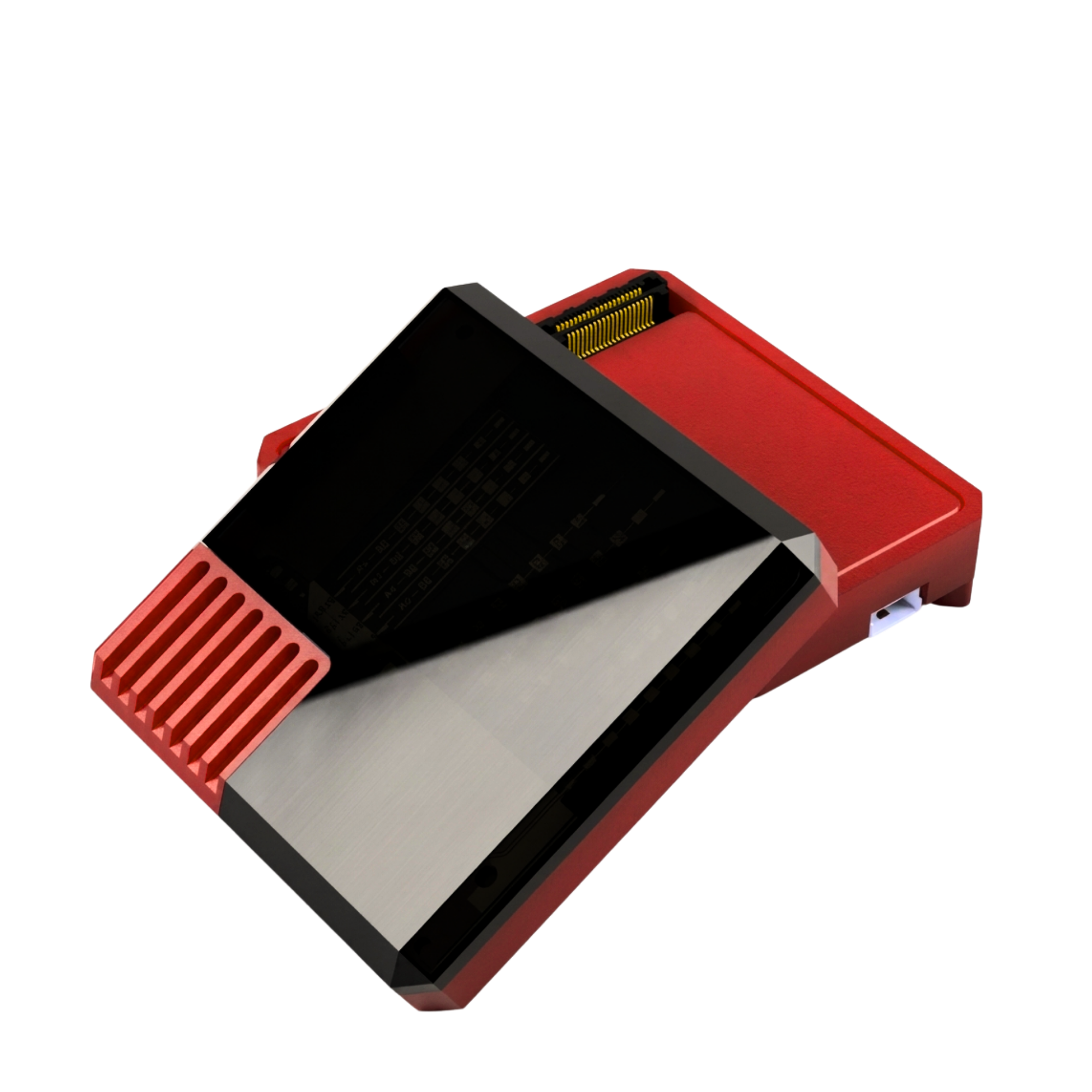

Tiny, modular, and stackable
Exchange antenna modules to support different ranges and fields of view while maintaining the same electrical and mechanical form factor.
46 × 46 mmForm factor
12 VSupply voltage
USB + EthernetHost connectivity
CONFIGURABLE PERFORMANCE
Tune the radar for the mission
Configure radar profiles around range, resolution, field of view, velocity performance, and frame rate.
Up to 200 mLong-range detection
Down to 3.9 cmRange resolution
Down to 0.03 m/sVelocity resolution
Up to 74° azimuthConfigurable field of view
BUILT FOR AUTONOMOUS SYSTEMS
Reliable sensing when optical sensors are challenged
mmWave Core measures object range, direction, and velocity while operating through darkness, fog, dust, and smoke.
Counter-UASAutonomous navigationAerial robotics
START BUILDING
Integrate mmWave Core
Follow the setup guide, learn radar fundamentals, and configure your first sensing profile.
